Vision-assisted placement
Top and bottom camera workflows help align components and support precise placement from small passives to larger packages.
Pick and Place machine
ALMAS 8

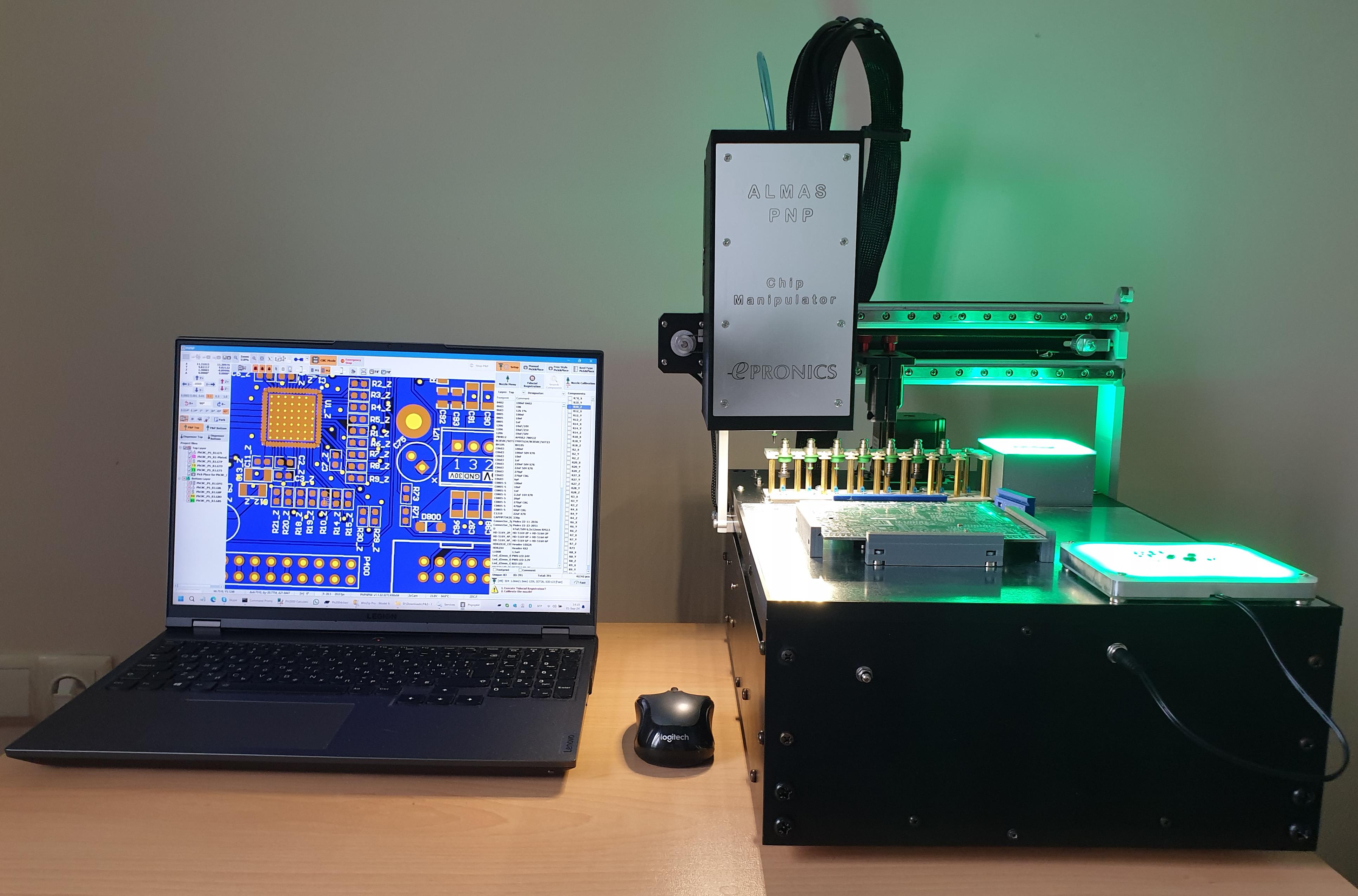

ALMAS 8 is a Pick and Place machine for SMD components and small-series PCB prototype assembly. It is operated with PhPNP software, developed for vision-assisted placement, calibration and component handling.
Machine
ALMAS 8 specifications
Compact Pick and Place machine for prototype PCB assembly and low-volume SMD placement.
| Work size | 270 x 220 mm |
|---|---|
| Dimensions | 530 x 390 x 400 mm |
| Weight | 13 kg |
| Power | 108 W; 90V..240V 50/60Hz |
| Max travel speed | 400 mm/s |
| Pick and Place head | 1 |
| Supported nozzles | JUKI 500 ... 511 |
| Min footprint | 0201 |
| Max component dimensions / weight | 40 x 40 mm; 10 g |
| Max board dimensions | Up to 250 x 200 mm |
| Position accuracy | +/- 5 um |
| Cameras | Top and Bottom |
| Mounting speed | 600 cps |
| Vacuum pump | Built-in |
| Motors | Stepper motors (X/Y/Z/A) |
| Linear encoders | X and Y, 1 um resolution |
| PC interface | USB 2.0/3.0, 1 port |
| PC requirements | CPU with 4+ cores; Windows 7/10/11 64-bit; 4+ GB RAM |
| Software | PhPNP64 Pro |
Software
PhPNP for ALMAS 8
PhPNP is the software for ALMAS 8. It supports camera-assisted placement, component alignment, calibration workflows and Pick and Place project handling.
Prototype assembly workflow
Designed for assembling PCB prototypes and small series, where setup speed, calibration and operator control matter more than high-volume production throughput.
Videos
ALMAS 8 and PhPNP demonstrations
Demonstrations of ALMAS 8 placement, PhPNP camera workflows, FreeStyle placement and ReelType tests.
