Legacy technical specification

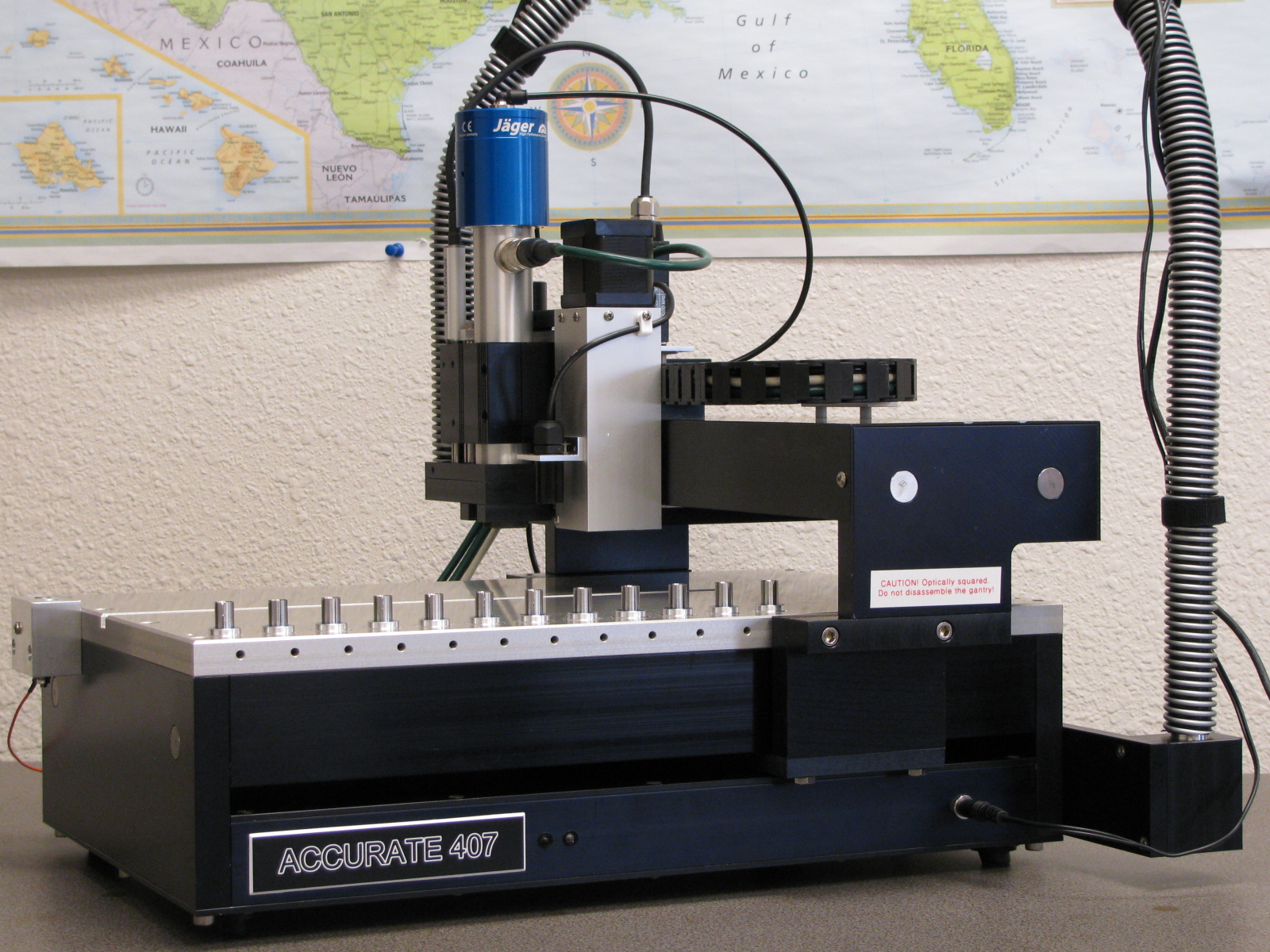

AccurateCNC A407
Archived technical parameters for the discontinued AccurateCNC A407 PCB prototyping machine.
ATCPhCNC360Gecko controllers with 2.5um resolution
Original specification
Technical parameters
| Model: | A407 |
|---|---|
| Working area (XxYxZ) | 304x256x33 mm, 12x10x1.3 inch |
| Machine design | Heavy duty aluminum and stainless steel platform |
| Machine table | 16 mm, 0.625 inch stress relieved high stability aluminum alloy |
| Tool holders | 12 |
| Resolution (X,Y,Z) | 2.54 μm, 0.0001 inch |
| Repeatability (X,Y,Z) | 2.54 μm, 0.0001 inch |
| Tool penetration control | Constant Automatic Surface Tracking - CAST™ , surface tracking relative to tool tip, fully programmable fully automatic. Uses a linear gauge with 1 μm, 0.04 mil resolution. |
| Tool Calibration | Precise Linear Gauge on the Z axis (0.04 mil, 1 micron resolution) |
| Spindle speed [rpm] | 5,000 to 100,000 programmable |
| Spindle motor | 3-phase HF induction motor; 100K/300W |
| Spindle drive | PhACdrive (sensorless, vector control, DSP based) |
| Tool collet | 3.175 mm, 0.125 inch |
| Spindle run out | 5 μm, 0.0002 inch max |
| Collet control | Pneumatic direct, 6-8 Bars (85-115 PSI) |
| Tool Change | Automatic |
| Minimum drill diameter | 0.2 mm, 0.008 inch |
| Minimum track size | 0.1 mm (4 mil) |
| Minimum gap size | 0.1 mm (4 mil) |
| Drilling speed | Up to 180 drill cycles per minute (varies with the distance between holes) |
| Homing system | Gold plated precision needle contacts |
| Max Travel speed (X,Y,Z) | Up to 150 mm/s, 6.0 inch/s |
| X/Y/Z positioning system | 2 phase bipolar stepper motors, precision lead screws with ActiveCAM™ anti-backlash SuperNuts™ |
| Interface to PC | USB 2.0 |
| Spindle and vacuum start-stop | Manual and/or program controlled |
| Feed rate and Spindle speed | Manual and/or program controlled |
| Dimensions (WxDxH) | 508x432x305 mm, 20x17x12 inch |
| Weight | 34 Kg, 74 Lbs |
| Power Supply | 100~240VAC, 50/60 Hz 415W (35W stand by) |
| Machine control system | PhCNC360 (16-bit micro controller) |
| Machine control programs: | Industry standard G & M codes ASCII, PHJ job files |
| Control and Edit software | PhCNC, Windows based (Win2000/2003/XP/Vista/Win7) x86/x64 |
| Imports | Gerber RS-274X files; Excellon Drill and Definition files; ODB++ files; AutoCAD DXF 2D files; PhCNC printer driver. |
| Camera | Fiducial / inspection video camera / microscope (USB 2.0) included. |
